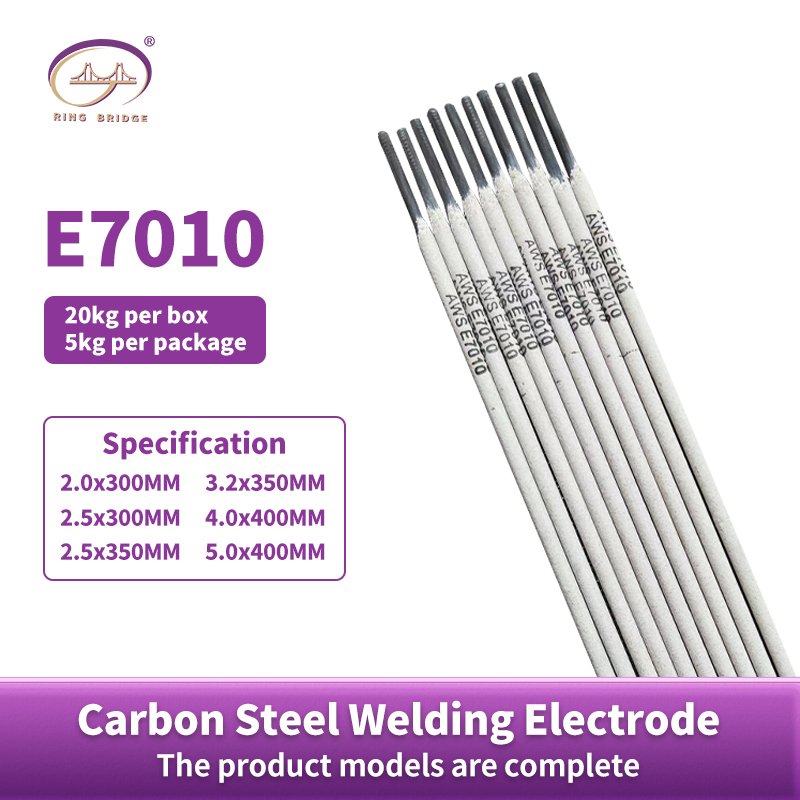

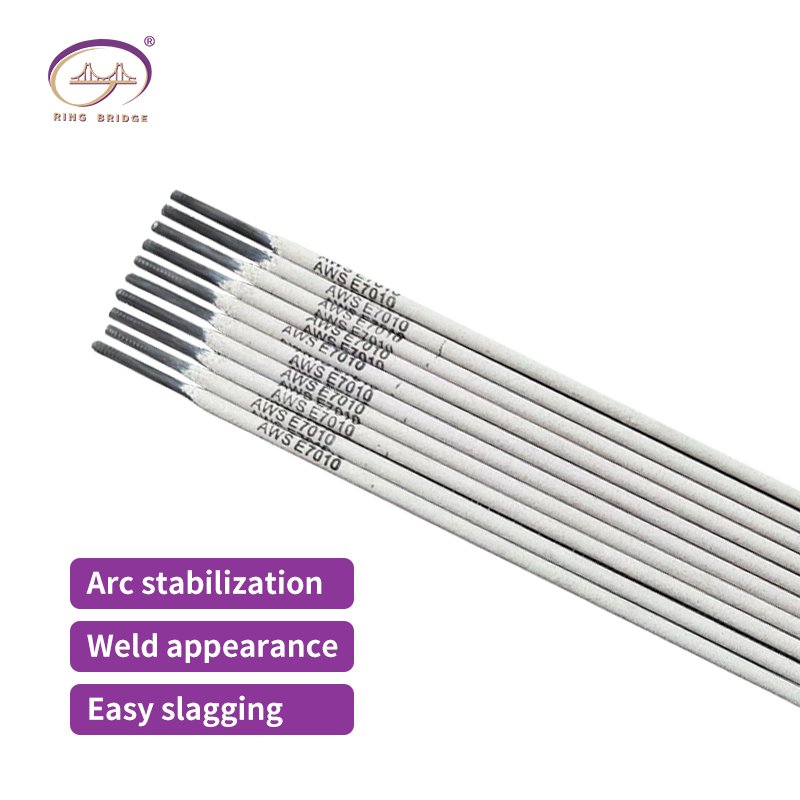

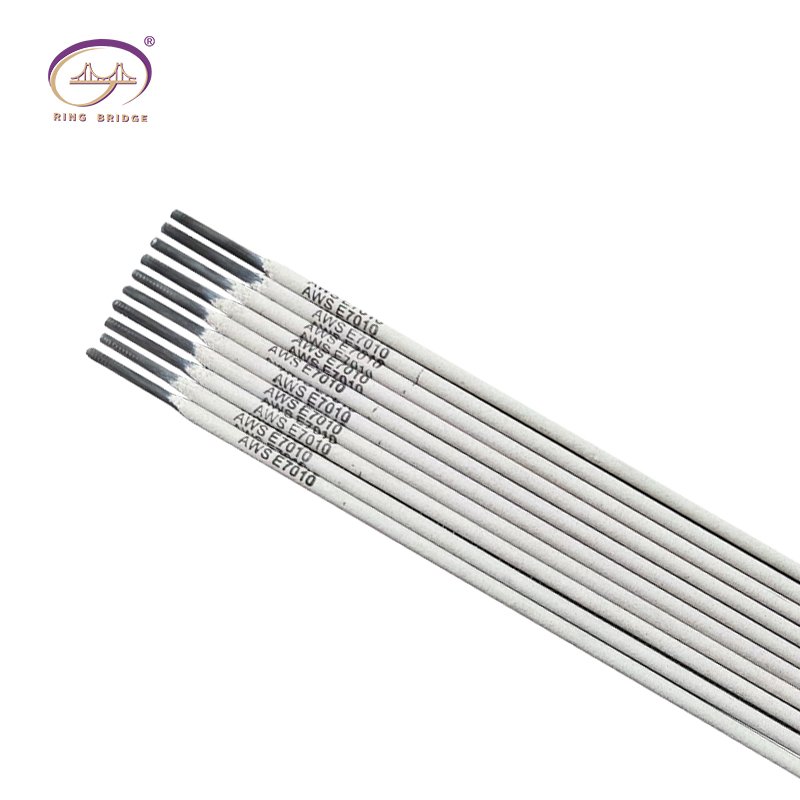

The E7010 welding rod is a high cellulose, sodium-coated electrode designed to deliver deep penetration and a forceful arc for all-position welding. Known for its excellent performance in pipeline welding and heavy structural steel fabrication, it offers strong fusion and superior slag removal.
This electrode is highly regarded for welding root passes on thick sections, pressure vessels, and piping where quality and strength are critical. The fast-freezing slag and stable arc provide ease of use in demanding field conditions and out-of-position welds.
Key Features
-
Deep Penetration: Powerful spray arc suitable for root passes on thick steel and pipe
-
All-Position Welding: Flat, horizontal, vertical (up/down), and overhead capabilities
-
Fast Freeze Slag: Thin, easily removed slag for cleaner welds
-
High Cellulose Flux: Provides excellent weld pool protection on dirty or rusty metal
-
DC Electrode Positive (DCEP): Requires DC+ polarity for optimal welding performance
-
High Deposition Efficiency: Enhanced productivity with iron powder in coating
Typical Applications
-
Oil & gas pipelines and pressure vessels
-
Structural steel construction including bridges and heavy frames
-
Shipbuilding and offshore platforms
-
Maintenance and repair of heavy machinery
-
Multi-pass welding requiring strong root penetration
Specifications
| Diameter (mm) | Length (mm) | Recommended Current (DC+) | Typical Use |
|---|---|---|---|
| 2.4 (3/32″) | 350 | 40 – 80 A | Thin sections, root pass |
| 3.2 (1/8″) | 350 | 75 – 125 A | Medium thickness structural weld |
| 4.0 (5/32″) | 350 | 110 – 170 A | Thick plates and pipelines |
| 4.8 (3/16″) | 350 | 140 – 215 A | Heavy-duty welds |
Chemical Composition (Typical Weld Metal %)
| Element | C | Mn | Si | S | P |
|---|---|---|---|---|---|
| Value | 0.08 | 0.60 | 0.25 | 0.015 | 0.012 |
Mechanical Properties (Typical Weld Metal)
| Property | Value |
|---|---|
| Tensile Strength | 540 MPa (78,300 psi) |
| Yield Strength | 430 MPa (62,400 psi) |
| Elongation | 22% |
| Impact Toughness | 80 J @ -20°C |
Welding Performance
-
Arc Characteristics: Smooth spray-type arc with strong root penetration
-
Penetration: Deep and focused, ideal for root passes on thick materials
-
Slag: Thin, fast-freezing, and easily removed for clean weld beads
-
Polarity: Must be run on DC electrode positive (DCEP) for best results
Packaging & Supply
-
Standard packaging options: 5kg, 10kg, and 20kg cartons
-
OEM packaging and labeling available to fit buyer requirements
-
Flexible minimum order quantities for small and bulk buyers
-
Efficient production schedules with reliable export logistics
Why Choose Our E7010 Welding Rod?
-
Factory-direct manufacturing with rigorous quality control
-
Full compliance with AWS A5.1 / E7010 standards
-
Competitive prices with OEM and ODM options
-
Proven export track record to Africa, South America, and Asia
-
Technical assistance for welding parameter optimization
Ready to Order?
Connect with our sales team to get price quotations, request free samples, or receive expert advice. Ensure your project success with our reliable E7010 welding rods built for tough welding conditions.
